ACROPRINT Pendulum™
Time and Attendance System

DC7000 mag stripe/bar code/proximity/biometric terminal

Pendulum Factory Brochure

DC7000 Factory Brochure     DC7000 Specifications

DC7000 Hardware Manual

Sample Reports     Demo Install Instructions

Demo Software     Systems Comparison Chart

Free ground shipping on system orders in continental USA
(for orders placed and paid through this website)

All other products incur shipping charges.

No returns accepted on systems. All systems sold as Do-It-Yourself installations.
Download the demo software to make sure it does what you are expecting.
Warranty issues are handled by the manufacturer.

Home

Pendulum is a simple to use yet powerful time and attendance solution that allows you to automate your company’s time and attendance tracking. What sets Pendulum apart from other time and attendance products is that it is a truly expandable system as your company grows so does the system. Administrators simply log on to the system to run reports, make corrections, and send Time Card Reports via email. Data collection devices include data terminals using magnetic stripe, bar code or biometric technology using, hand geometry scanners. Pendulum
software collects these transactions and your pay rules are applied automatically, consistently and impartially. With the Pendulum Time and Attendance Solution you will know exactly where your employee’s time and your dollars are spent.
Eliminate Payday Panic by removing human errors from your payroll.
Accurately report employee’s hours and dramatically reducing
the amount of time spent preparing payroll.

Supported Operating Systems:

Pendulum-1
Pendulum T & A software package for Windows on CD,
and Security Key.
(1)One concurrent user of the database software license.
Unlimited number of employees.
Includes: Employee Messaging, AutoPoll/Report
and Signal Control Modules.
End User Training with Acroprint MUST be purchased.
purchase required DC7000 or HandPunch hardware below

$569.00
vs.
$800.00
List

Pendulum-5
Pendulum T & A software package for Windows on CD,
and Security Key.
(5)Five concurrent users of the database software license.
Unlimited number of employees.
Includes: Employee Messaging, AutoPoll/Report,
Signal Control and Email Modules.
Please allow 3 days for software preparation.
End User Training with Acroprint MUST be purchased.
purchase required DC7000 or HandPunch hardware below

$999.00
vs.
$1600.00
List

Pendulum-10
Pendulum T & A software package for Windows on CD,
and Security Key.
(10)Ten concurrent users of the database software license.
Unlimited number of employees.
Includes: Employee Messaging, AutoPoll/Report,
Signal Control and Email Modules.
Please allow 3 days for software preparation.
End User Training with Acroprint MUST be purchased.
purchase required DC7000 or HandPunch hardware below

$1629.00
vs.
$2400.00
List

Pendulum-15
Pendulum T & A software package for Windows on CD,
and Security Key.
(15)Fifteen concurrent users of the database software license.
Unlimited number of employees.
Includes: Employee Messaging, AutoPoll/Report,
Signal Control, Email and Lockout Modules.
Please allow 3 days for software preparation.
End User Training with Acroprint MUST be purchased.
purchase required DC7000 or HandPunch hardware below

$2169.00
vs.
$3200.00
List

Pendulum-25
Pendulum T & A software package for Windows on CD,
and Security Key.
(25)Twenty-five concurrent users of the database software license.
Unlimited number of employees.
Includes: Employee Messaging, AutoPoll/Report,
Signal Control, Email, Lockout,
Job Costing, Input Validation and Access Modules.
Please allow 3 days for software preparation.
End User Training with Acroprint MUST be purchased.
purchase required DC7000 or HandPunch hardware below

$3039.00
vs.
$4500.00
List

upgrading from 20/20 or 9800 single user to a Pendulum multi-user requires:
1> purchase of $199 upgrade to Pendulum AND
2> purchase of Upgrade to Pendulum 5, 10, etc., AND
3> purchase of End User Training from Acroprint
space

ATR20/20 or ATR9800 Upgrade to Pendulum T & A software
for Windows on CD. (1)One concurrent user of the database
software license. Unlimited number of employees. Includes
Employee Messaging, AutoPoll/Report and Signal Control Modules.
End User Training with Acroprint MUST be purchased.

Upgrade to Pendulum 5 User T & A software for Windows on CD
and Security key. (5)Five Concurrent users of the database software
license. Unlimited number of employees. Includes Employee
Messaging, AutoPoll/Report, Signal Control Modules and Email.
Please allow 3 days for software preparation.
End User Training with Acroprint MUST be purchased.

Upgrade to Pendulum 10 User T & A software for Windows on CD
and Security key. (10)Ten Concurrent user of the database software
license. Unlimited number of employees. Includes Employee
Messaging, AutoPoll/Report, Signal Control Modules and Email.
Please allow 3 days for software preparation.
End User Training with Acroprint MUST be purchased.

Upgrade to Pendulum 15 User T & A software for Windows on CD
and Security key. (15)Fifteen Concurrent user of the database software
license. Unlimited number of employees. Includes Employee
Messaging, AutoPoll/Report, Signal Control, Lockout and Email.
Please allow 3 days for software preparation.
End User Training with Acroprint MUST be purchased.

Upgrade to Pendulum 25 User T & A software for Windows on CD
and Security key. (25)Twenty-five Concurrent user of the database
software license. Unlimited number of employees. Includes Employee
Messaging, AutoPoll/Report, Signal Control, Email, Lockout, Job
Costing, Input Validation and Access Modules.
Please allow 3 days for software preparation.
End User Training with Acroprint MUST be purchased.

Upgrade to Pendulum Job Cost Module
allows the system four levels of data collection
including Department, Job, Step and Operation
*Support agreement with Job Costing Module would be $799

Upgrade to Pendulum Signal Control Module
allows the system to ring horns or bells
at preset times and days of the week
via an externally connected relay box
Signal 1 entry, 7 times a week - 48 max times

Upgrade to Pendulum Access Control Module
allows daily access granted or denied
based on the access level provided.

Upgrade to Pendulum Auto Poll/Reporting Module
allows scheduled polling, reports to be printed

Upgrade to Pendulum Lockout Module
allows the systems to control un-authorized overtime,
and/or works with the Access Control Module
to control un-authorized access to an area

Upgrade to Pendulum Input Validation Module
works only with Job Costing Module allowing
the system to validate Jobs entered at the terminal.

Upgrade to Pendulum Messaging Module
allows the system to send Employees a message at the
terminal and/or when used with Auto poll/Reporting
Module hours worked can be messaged to employees

Upgrade to Pendulum Email Module
allows the systems to run reports and send these reports to
managers, supervisors, and/or employees.
When used with AutoPoll/Reporting Module,
reports can be sent automatically via email.

Required End User Training with remote internet access,
4 hours with Acroprint

Pendulum Single PC one year contract with Acroprint

Pendulum Network one year contract with Acroprint

Software Support for Pendulum software without a contract,
per hour or portion with Acroprint

Annual Support Agreements with the manufacturer
are HIGHLY recommended; without one,
Pendulum per incident support is $125.00 per hour or any portion of an hour
from Acroprint's website...

An Acroprint Software Support Contract offers you these benefits:

A full year (12 months) of free telephone support from our
highly-trained Technical Support Specialists
(available during Acroprint business hours).

Free software upgrades
(within the version of the product purchased).

Free service packs.

Priority status on support issues

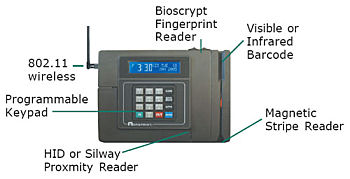

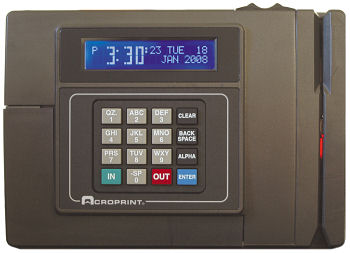

DC7000 Hardware/Description

DC7000 terminals are currently unavailable
order the appropriate ADCT terminal instead

The DC7000 Acroprint data collection terminal is a smarter, more powerful tool for time and attendance and workforce management. And now it's available.
The DC7000 boasts a *powerful processor* and offers *multiple reader options* including advanced finger scan biometrics, barcode, magstripe and proximity (HID and other 125 kHz RFID compatible standards). Communications options include encryption-secured Ethernet, modem and serial. With built-in flash memory of up to 2 MB, the DC7000 is engineered to *grow and adapt* to your customers’ evolving needs.

The DC7000 is a flexible terminal platform that can be *customized to individual specifications*. It can be sold in combination with the Pendulum software or integrated into other software applications.

The DC7000 is *completely backward-compatible with the well-known ADCT product line*, allowing for a seamless migration to the DC7000. Additionally, there is the opportunity to integrate the newly introduced features like built-in biometrics.

 ADCT Hardware/Description

ADCT, Acroprint Data Collection Terminal, base unit is with backlit display, 40 character (2x20), 16 button full travel keypad, 64K EPROM, 128K RAM battery backed memory and calendar, impact resistant black ABS plastic case, parallel port for printing and DIN input port for wands, bells and access control.
Terminal Includes: Power transformer, hardware installation
manual, wall mounting kit and configuration badge.
Media input options:
Magnetic stripe reader (ABA Track 2)
Bar Code reader (visible/infrared), (3 of 9 and 2 of 5 Bar Code formats)
Proximity reader (HID 26 bit)
Biometric reader (Fingerprint)
Communication options:
RS232/485 serial
Internal Modem (Auto answer/Auto dial)
Ethernet 10/100 base T

TCP/IP

ADCT Factory Installed Options
(Require the purchase of a ADCT)

Magnetic Stripe Badges

Bar Code Badges

Bar Code, pack of 50, #001-050

Bar Code, pack of 50, #051-100

Bar Code, pack of 50, #101-150

Proximity Badges

HID 1386 ISO Prox II Badges, each

.07" HID 1386 ProxCard II Badges, each

125 kHz RFID Proximity Badges, pack of 10, each

Miscellaneous Badges

Configuration Badge, ADCT only

Supervisor Badge, ADCT only

Cleaning Badges, pack of 10

Badge Racks

Cables

Power Supplies

Signal Devices

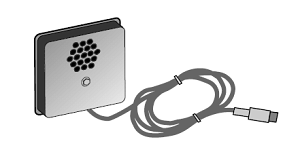

External Buzzer, plugs directly into ADCT 9-pin DIN

Handpunch Hardware

HandPunch 1000
Single HandPunch Application
50’ of RS232 cable
Memory for 50 Users
Installation/Operation Manual
Power Supply (120V AC to 13.5VDC)
One-Year Parts & Labor Warranty

HandPunch 1000E
HP1000 with Ethernet
Memory for 100 Users

HandPunch Accessories

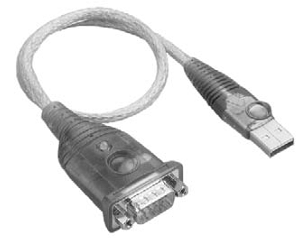

Converters/Connectors

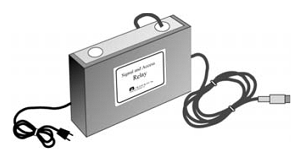

Relay Boxes

Power Supplies

Cable

Memory

Key

HandPunch Key Set
